LS Flexplate w/ Bolts LS1 4L80E TH400 TH350 700R4 2004R Swap Flywheel

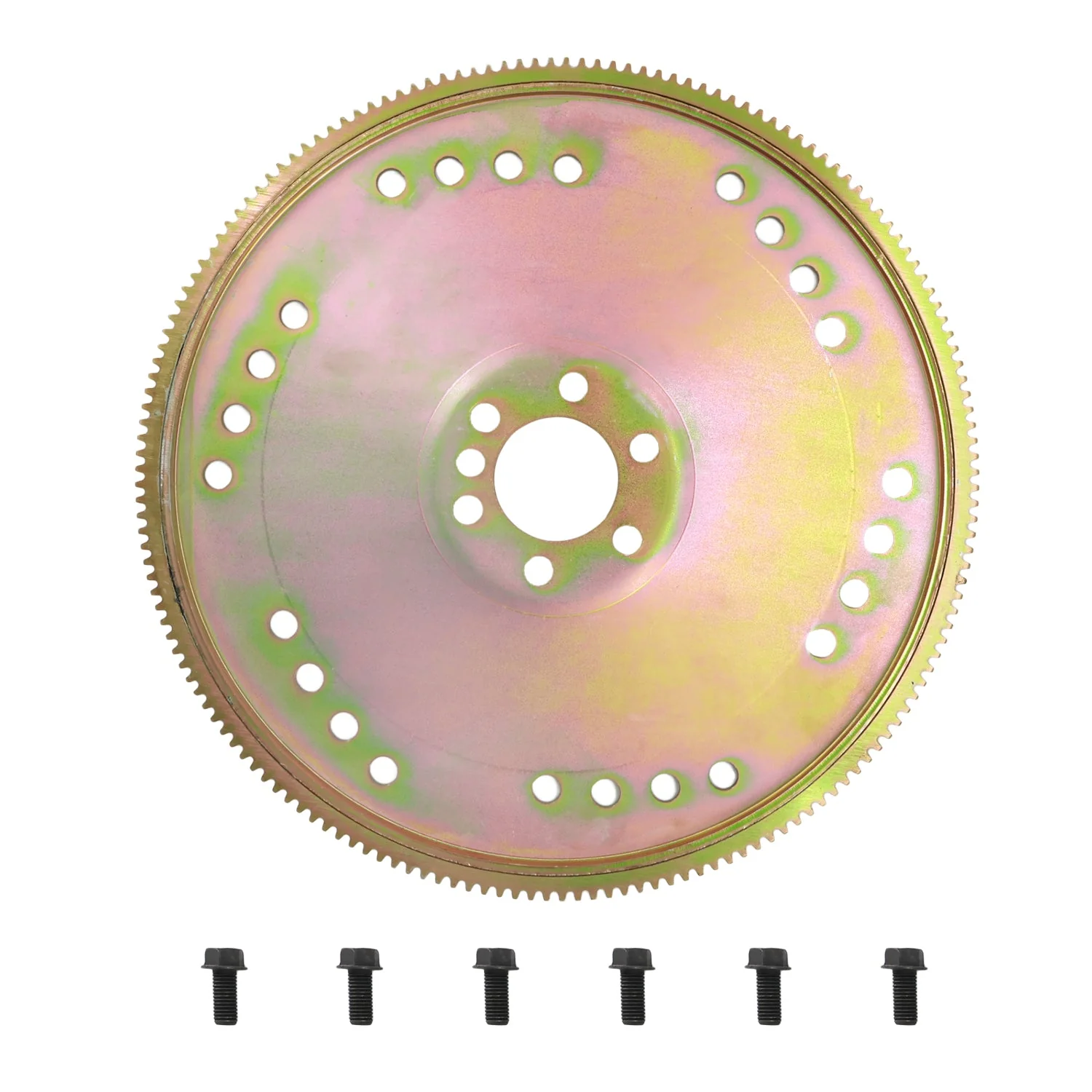

LS Heavy Duty Steel Flex Plate
- Compatible with all GM torque converter bolt patterns (3 and 6 bolt converters)
- Works with Powerglide, TH400, TH350, 700R4, 4L60e, 4L80E, 2004R transmissions for LS series engines
- 168 teeth. 0.210" thick steel construction
- Will require a torque converter made for an LS engine or use with adapter part number 51165 for NON LS transmissions
- Includes: 1 heavy duty flex plate, 6 flex plates bolts

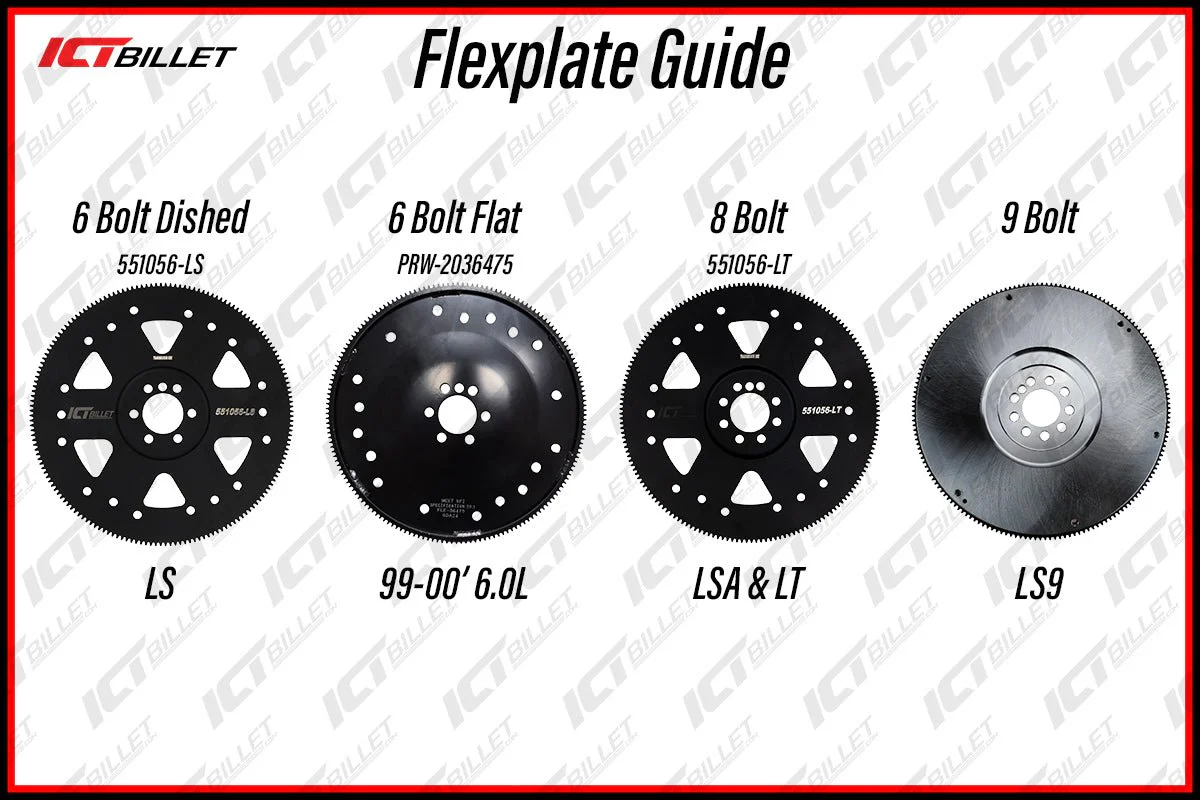

- Includes 4 bolt patterns: 10.75" (4L60E, 700R4), 11.06" (6L80/90E), 11.5" (4L80E, 8L90E, 10L80/90E) 6 bolt torque converter bolt patterns (compatible with the largest selection of bolt patterns) and 10.4"
- Not SFI rated

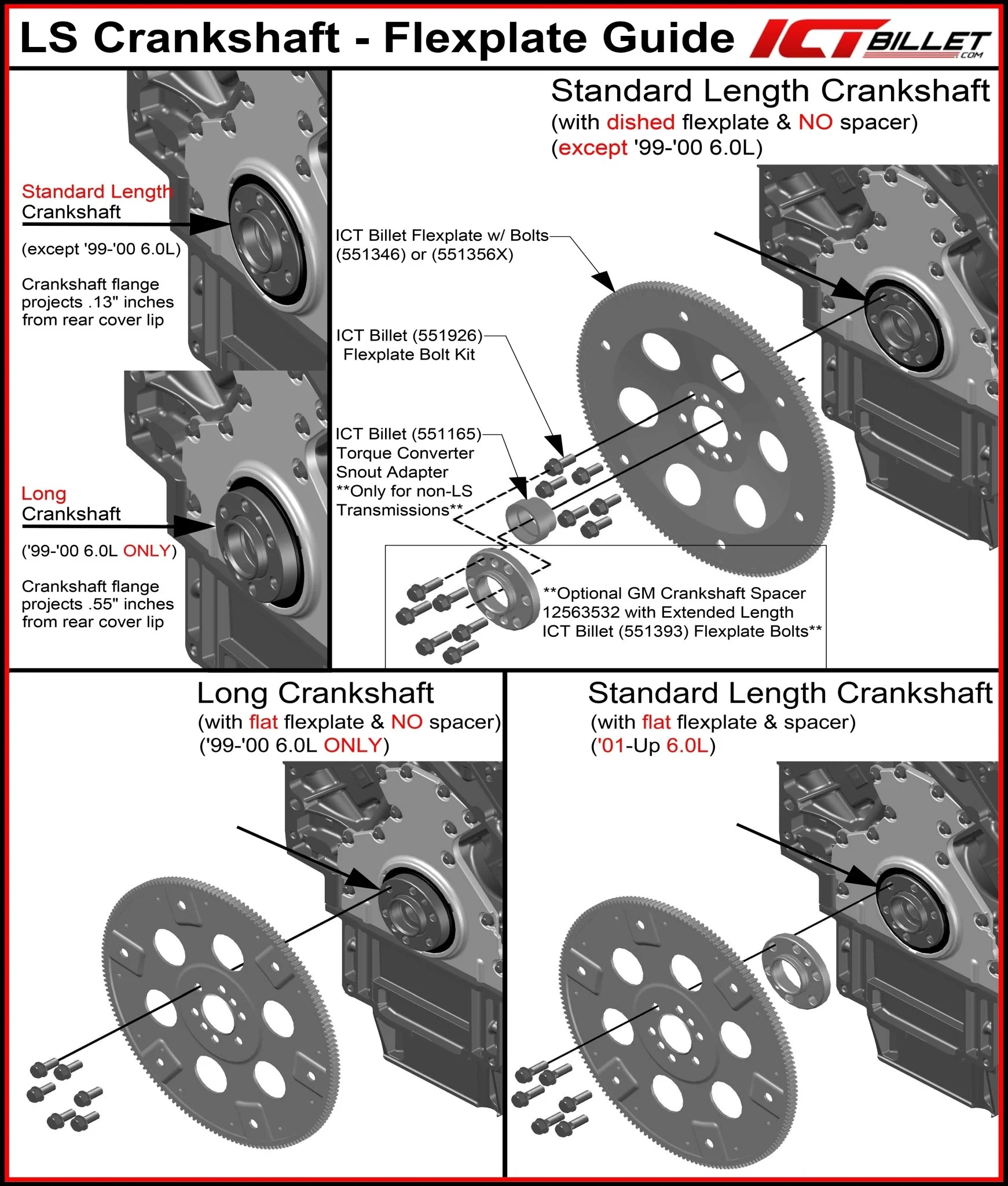

Common torque converter bolt patterns: 10.75" fits Powerglide, TH350, 2004R, 700R4, 4L60, (SBC & Non LS with 4L60E), 11.06 (LS & 4L60E with LS engine), and 11.5"(TH400 & 4L80E) (Will not fit 1999-2000 6.0L or LSA/LS9 (8 bolt flywheel engines). These years have extended length crankshaft flange and will NOT fit.)
$48.00
Original: $159.99
-70%LS Flexplate w/ Bolts LS1 4L80E TH400 TH350 700R4 2004R Swap Flywheel—
$159.99
$48.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LS Heavy Duty Steel Flex Plate
- Compatible with all GM torque converter bolt patterns (3 and 6 bolt converters)
- Works with Powerglide, TH400, TH350, 700R4, 4L60e, 4L80E, 2004R transmissions for LS series engines
- 168 teeth. 0.210" thick steel construction
- Will require a torque converter made for an LS engine or use with adapter part number 51165 for NON LS transmissions
- Includes: 1 heavy duty flex plate, 6 flex plates bolts
- Includes 4 bolt patterns: 10.75" (4L60E, 700R4), 11.06" (6L80/90E), 11.5" (4L80E, 8L90E, 10L80/90E) 6 bolt torque converter bolt patterns (compatible with the largest selection of bolt patterns) and 10.4"
- Not SFI rated
Common torque converter bolt patterns: 10.75" fits Powerglide, TH350, 2004R, 700R4, 4L60, (SBC & Non LS with 4L60E), 11.06 (LS & 4L60E with LS engine), and 11.5"(TH400 & 4L80E) (Will not fit 1999-2000 6.0L or LSA/LS9 (8 bolt flywheel engines). These years have extended length crankshaft flange and will NOT fit.)
