FuelTech - 8HP Transmissions PCB Board

Fueltech 8HP Transmissions PCB Board

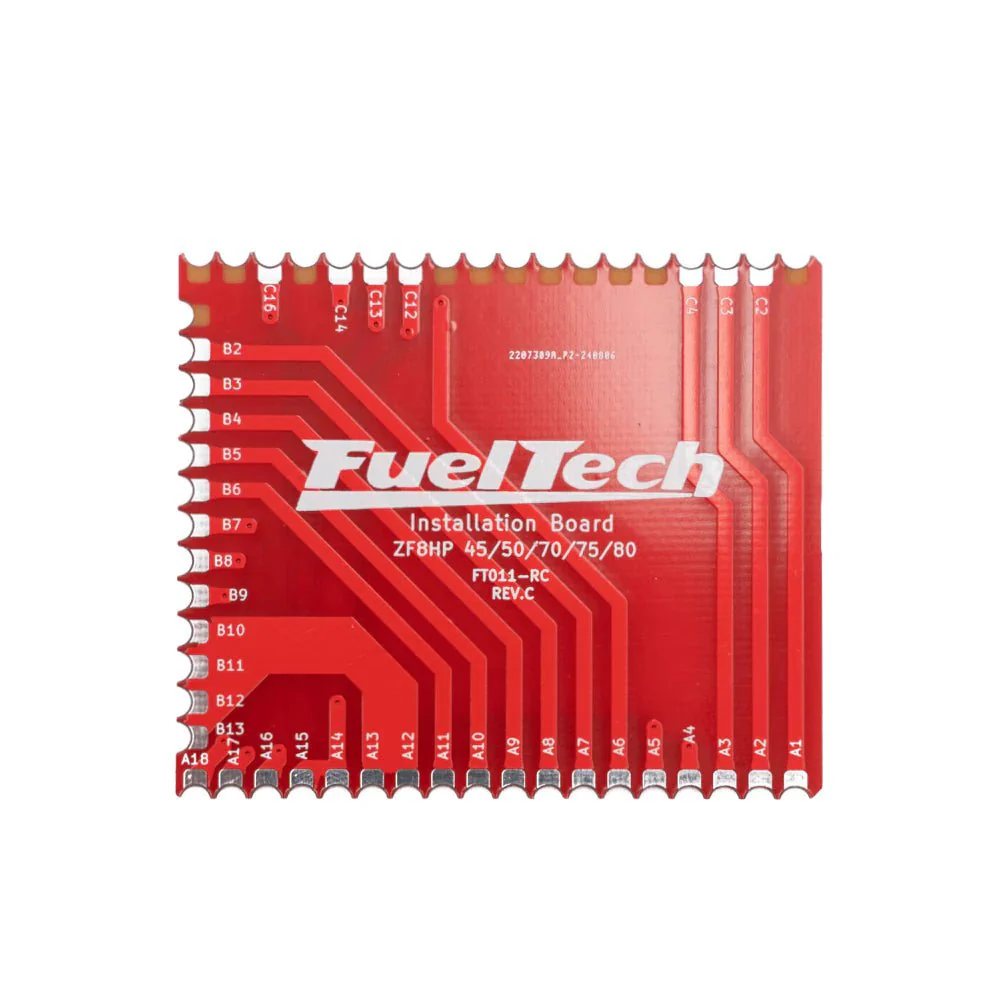

FuelTech 8HP Transmission PCB Board is a dedicated circuit board designed to command the 8HP automatic transmission with a FuelTech ECU

• Compatible with 8HP70/75/80/90
• Required to control the gear changes and transmission pressure according to the programmable map on the FuelTech ECU
• FuelTech ECU and FuelTech Peak and Hold PRO Injector Driver are also required for complete control of the 8HP transmission.
• Reduces the need for complex custom wiring or modifications.
  Compatible with front and rear cam sync (1 and 4 pole cam)
• Enables custom tuning of shift points, torque management, and response times.
  Can be programmed for performance driving, drag racing, or fuel-efficient operation.
• Compatible with any standalone ECU on the market
• 3 inputs are required: Inputshaft RPM, Transmission temperature and Driveshaft RPM
• 8 outputs required: Transmission Lockup / Solenoid A / Solenoid B / Solenoid C /
  Solenoid D / Solenoid E / Solenoid F / Line pressure



Fueltech ECU and Peak and Hold PRO Injector Driver not included

Download 8HP installation board
